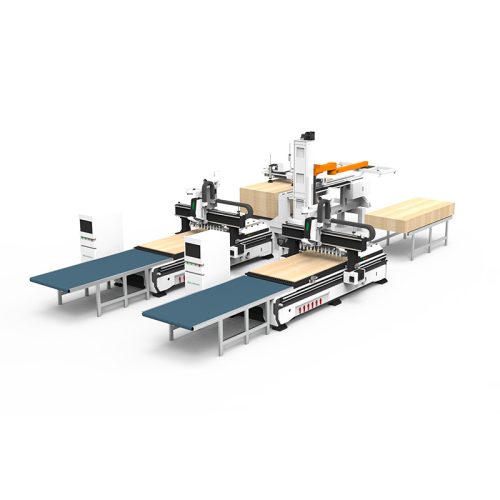

Two CNC Nest Wood Cutting Machine Production Line

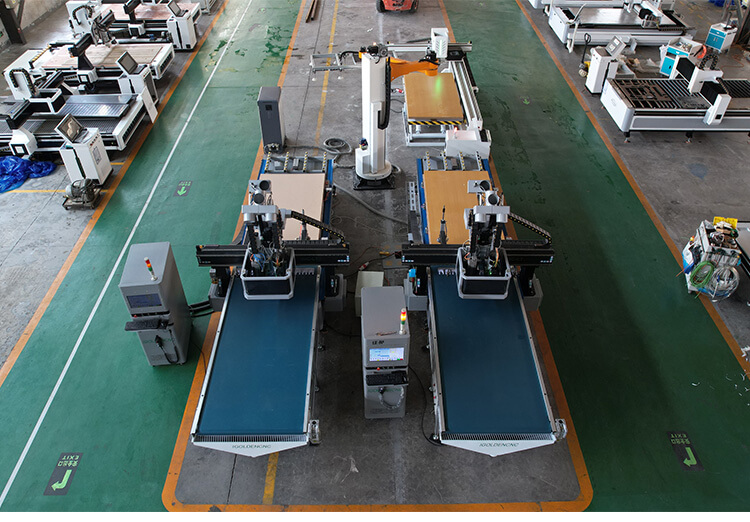

This nesting cell consists of a high-speed automatic labeling machine, two automatic loading and unloading ATC nesting CNC machines, a power drum line, and a central control system. Operators only need to put the wooden boards on the lifting platform. Then the labeling machine will automatically label the board, and then the central control system will automatically assign it to the nesting center to for cutting.

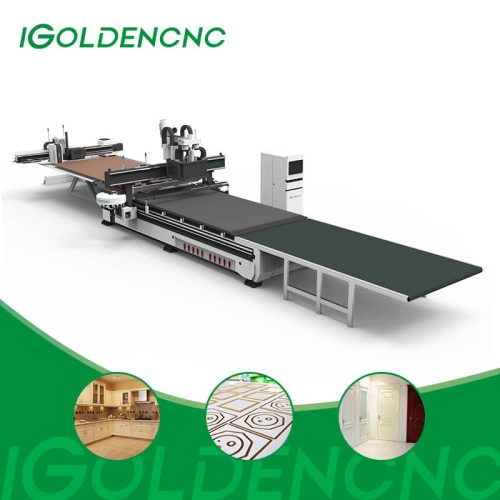

Labeling and Nesting Cell for Panel Furniture Automatic Production Line

In modern furniture manufacturing, efficiency and precision are paramount. Two CNC nesting wood cutting machines working in tandem can transform your production line, dramatically increasing output while maintaining exceptional quality.

Nesting CNC machine cell furniture cutting production line is composed of multiple CNC nesting machines and multi-axis robots. And it can be flexibly matched and combined according to the customer’s site and output. Therefore, it can effectively reduce human production errors and plate losses. Moreover, it greatly improves the production efficiency and utilization rate of panels.

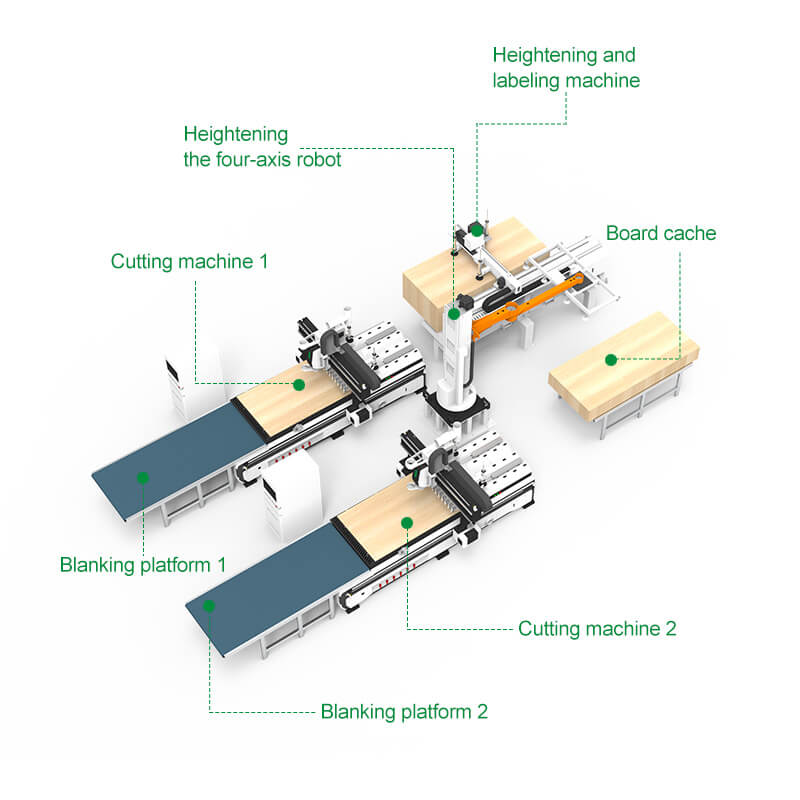

The lift below the elevated labeler can hold 60 sheets.→The central control software sends the label information to the labeling machine.→After the automatic labeling machine has finished labeling, the robot will distribute it to the No. 1 and No. 2 cutting machines.→The processing program is sent by the central control software to the corresponding cutting machine for cutting. →If the cutting machine has not completed its work, the robot will place the grabbed sheet in the labeling buffer area, and the labeling machine will continue labeling until all processed sheets are completed.

A CNC (Computer Numerical Control) nesting machine is an automated wood cutting system that optimizes material usage by arranging cutting patterns to minimize waste. These sophisticated machines use advanced software to calculate the most efficient layout of furniture parts on sheet materials like plywood, MDF, and particleboard.

This furniture product lines is IGOLDEN 2025 newly designed One-to-Two function machine line: Smart 3.0Pro, it can be meet the demands of modern furniture manufacturing and are ideal for producing precision furniture, suitable for small and medium-sized factories. It can support cutting, engraving, drilling ,milling and labeling, which providing a versatile solutions to meet a wide range of production requirements. All of our CNC router furniture production lines are integrated with the market’s leading CAD/CAM software, streamlining the design-to-production process for increased productivity.

Equipment parameters

Model	iGC-GL-1T2
Robot
Number of axes	2-axis
Beam length	10.2m
Number of suction cups	8
Suction cup load weight	Max. 100kg
CNC cutting machine
Working area（X,Y,Z）	13002500250mm（Customizable）
Max. empty line speed	60000mm/min
Max. operating speed	30000mm/min
Spindle power	9.0kw Air-cooled tool-changing spindle
Spindle speed	24000rpm
Positioning accuracy	0.03mm
X,Y axis transmission	Rack
Z-axis drive	Ball Screw
Repeat positioning accuracy	0.02mm
Command language	G Code
Operating voltage	AC220V/380V, 50Hz

Main Configuration

	Name	Details
Ⅰ	Mechanical part
1	Bed	Square tube welding structure
2	Dragon Gate	Steel Structure
3	Spindle	HQD 9.0kw air-cooled automatic tool-changing spindle
4	Mesa	PVC vacuum adsorption table
5	Guide	Taiwan Hiwin
6	Rack	Taiwan YYC
7	Lead Screw	Taiwan TBI
Ⅱ	Circuit part
1	Drive	Dongling Motor
2	Reducer	SHIMPO
3	Frequency Converter	Fuling
4	Electrical components	France SCHNEIDER
5	Three-color light	Yes
6	Cabinet	IGOLDENCNC
Ⅲ	Tool setting part
1	Tool magazine	Inline tool change magazine
2	Tool setting probe	Automatic tool setting instrument
Ⅳ	Oil circuit
1	Lubrication system	Automatic oil filling
Ⅴ	System Control and Software
1	Intelligent connection control system	IGOLDENCNC
2	Labeling	Automatic labeling

Applications of the CNC Router Furniture Production Line

CNC router furniture production lines are widely used in the furniture manufacturing industry. Thanks to their excellent compatibility and high degree of automation, they can meet the production needs of a wide range of furniture. They are ideal for modern furniture manufacturers who want to optimize existing production processes and improve product quality. Typical applications of this production line are as follows:

1. Customized and Modular Furniture Production

CNC router furniture production line are good at customized furniture and modular designs. They can perform high-precision cutting and processing to ensure accurate dimensions and beautiful designs, and can meet the needs of personalized customization. They provide strong support for the high-end furniture market.

2. Cabinet, Kitchen Furniture and Wardrobe Production

Whether it is modern cabinets, kitchen furniture or large-capacity wardrobes, the CNC router can achieve high-precision processing, ensuring that the dimensions of each part are the same and the machined surface is smooth and flat, thereby improving the overall assembly quality and aesthetics of the product.

3. Panel Door and Decorative Woodworking Processing

CNC router furniture production line have unique advantages in the processing of panel doors and decorative wood products, and are especially suitable for creating complex carved designs and fine textured decorations. Whether it is a practical door panel or an artistic wood product, precise processing can be achieved.

4. Office Furniture Manufacturing

In the field of office furniture, CNC router furniture production line can quickly, stably and mass produce furniture such as desks and filing cabinets, while ensuring the structural durability and appearance consistency of the products, providing cost-effective solutions for the enterprise market.
