Step-by-Step Guide to Installing an AC Stabilizer Safely at Home

Installing an AC stabilizer is an important step to protect your air conditioner from voltage fluctuations and unexpected power surges. In many Indian households, unstable electricity supply can affect cooling performance and damage internal AC components. A properly installed stabilizer ensures safe operation, improves efficiency, and extends the lifespan of your appliance. This step-by-step guide explains how to install an AC stabilizer safely at home and choose the right capacity for your needs.

Why Installing an AC Stabilizer Is Important

Air conditioners rely on stable voltage for smooth operation. Frequent voltage fluctuations can harm the compressor, reduce cooling efficiency, and increase electricity consumption. Installing a stabilizer helps regulate voltage automatically and protects sensitive AC components from damage.

Whether you are using a window AC or split AC, selecting the correct stabilizer capacity—such as an ac stabilizer for 1 ton, ac stabilizer for 1.5 ton, or ac stabilizer for 2 ton—ensures optimal performance and long-term protection.

Tools and Safety Precautions Before Installation

Before starting installation, it is essential to follow basic safety guidelines. Proper preparation helps avoid electrical hazards and ensures correct setup.

Here are a few important precautions:

• Turn off the main power supply before installation

• Use insulated tools for electrical safety

• Ensure proper earthing connection

• Install the stabilizer in a dry and ventilated area

• Check compatibility with your AC capacity

If you are unsure about wiring connections, consulting a qualified electrician is always recommended.

Step 1: Choose the Right Location for the Stabilizer

Selecting the correct installation location is the first step toward safe operation. Most AC stabilizers are designed for wall mounting near the indoor unit of a split AC or close to the window AC power source.

Make sure the stabilizer is:

• Installed at a safe height from the floor

• Away from moisture or direct sunlight

• Positioned near a proper power outlet

• Easily accessible for maintenance

Proper placement ensures efficient voltage regulation and longer stabilizer life.

Step 2: Select the Correct Stabilizer Capacity

Choosing the right stabilizer capacity is essential for protecting your air conditioner. The stabilizer should match the tonnage of your AC unit for best performance.

For example:

• Use an ac stabilizer for 1 ton AC in compact rooms

• Install an ac stabilizer for 1.5 ton AC in medium-sized spaces

• Choose an ac stabilizer for 2 ton AC for larger rooms requiring higher cooling capacity

Using the correct stabilizer prevents overload and ensures reliable cooling performance.

Step 3: Mount the Stabilizer Securely on the Wall

Most modern stabilizers come with wall-mounting brackets for easy installation. Mark the drilling points carefully and mount the stabilizer firmly using appropriate screws.

Ensure that:

• The stabilizer is fixed securely

• Wiring ports remain easily accessible

• Air circulation around the stabilizer is maintained

Proper mounting reduces vibration and enhances safety.

Step 4: Connect the Input Power Supply

Once the stabilizer is mounted, connect the input wire from the main power supply to the stabilizer input terminals. Follow the wiring diagram provided with the stabilizer carefully.

Important tips to remember:

• Use correct wire thickness as recommended

• Tighten terminal screws properly

• Ensure secure earthing connection

Correct wiring helps maintain stable voltage flow and prevents electrical faults.

Step 5: Connect the Stabilizer Output to the Air Conditioner

After connecting the input supply, connect the stabilizer output wire directly to the AC unit. This allows the stabilizer to regulate voltage before electricity reaches the air conditioner.

Make sure:

• Connections are tight and secure

• No exposed wiring remains

• Cable routing is neat and protected

This step ensures safe power delivery to your AC.

Step 6: Test the Stabilizer Before Final Use

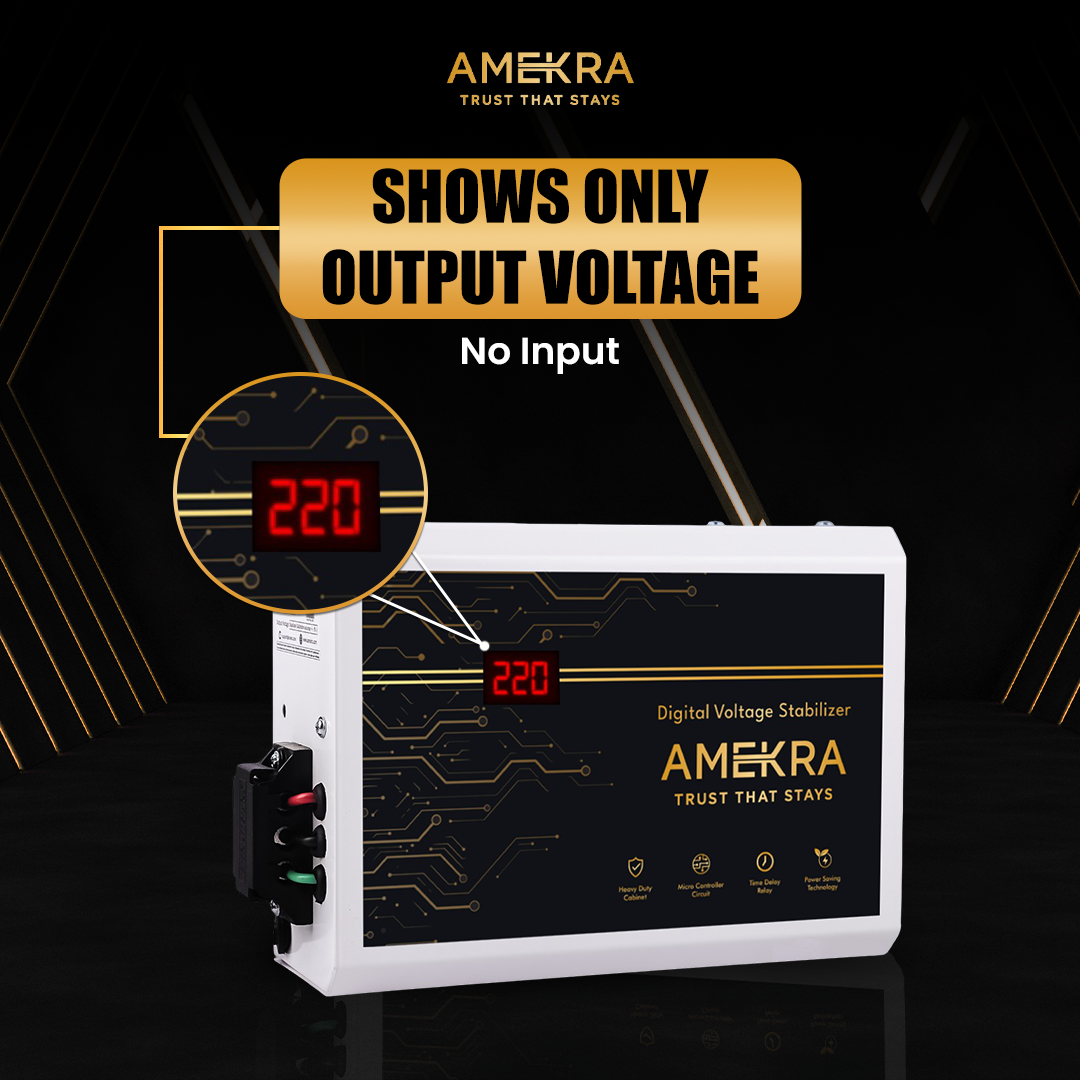

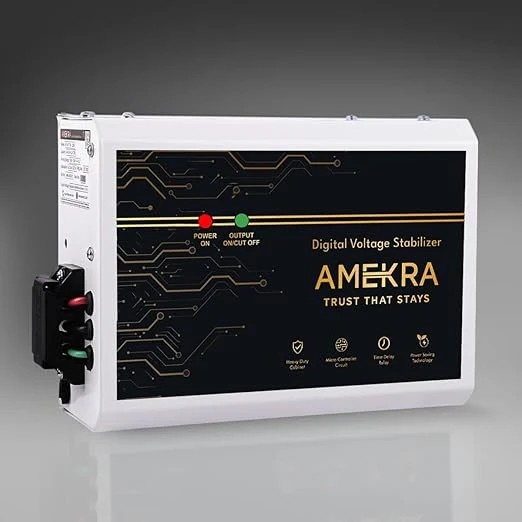

After completing installation, switch on the main power supply and test the stabilizer operation. Most stabilizers include indicator lights or digital displays showing voltage status.

Check whether:

• The stabilizer powers on correctly

• Voltage levels appear stable

• The AC starts smoothly without interruptions

Testing confirms that installation has been completed properly.

Common Installation Mistakes to Avoid

Avoiding common installation mistakes improves stabilizer efficiency and safety.

Do not:

• Install the stabilizer in humid areas

• Use incorrect stabilizer capacity

• Ignore earthing connections

• Leave loose wiring connections

Following correct installation practices ensures long-term reliability.

Final Thoughts

Installing an AC stabilizer at home is a simple yet important step toward protecting your air conditioner from voltage-related damage. With proper planning, correct placement, and safe wiring practices, you can ensure stable cooling performance throughout the year.

Choosing the right stabilizer capacity—whether an ac stabilizer for 1 ton, ac stabilizer for 1.5 ton, or ac stabilizer for 2 ton—plays a key role in maintaining efficiency and extending the life of your air conditioner. A correctly installed stabilizer not only safeguards your appliance but also provides peace of mind during peak summer power fluctuations.
