Motor Run Capacitor 450VAC (1–100µF): Selection Guide, Applications & Technical Insights

Motor run capacitors play a critical role in ensuring the efficient and reliable operation of single-phase AC motors used in ceiling fans, HVAC systems, compressors, and industrial equipment.

Selecting the right capacitor is not just about capacitance value — it directly impacts:

Motor efficiency
Power consumption
Heat generation
Equipment lifespan

In this guide, we explore how 450VAC metallized polypropylene motor run capacitors deliver superior performance and how to select the right one for your application.

🔹 What is a Motor Run Capacitor?

A motor run capacitor is designed for continuous duty operation in AC motors. It improves:

Power factor
Torque stability
Energy efficiency

Unlike start capacitors, run capacitors remain in the circuit during operation, making reliability and low loss performance critical.

🔹 Key Technical Features

Deki Series 204 motor run capacitors are engineered with metallized polypropylene dielectric, offering:

✅ Self-Healing Property

Ensures longer life by automatically isolating dielectric breakdown areas.

✅ Low Loss Factor (Tan δ)

Reduces internal heating and improves efficiency.

✅ High Insulation Resistance

Ensures stable electrical performance over time.

✅ Continuous Duty Performance

Designed for Class-B operation in demanding environments.

✅ Compliance & Reliability

IS 2993 compliant
RoHS compliant
Climatic category: 40/85/21

These features ensure consistent performance in industrial and appliance applications

🔹 Technical Specifications (Quick Overview)

Capacitance Range: 1–100 µF
Rated Voltage: 450 VAC
Frequency: 50 Hz
Dielectric: Metallized Polypropylene
Operating Temperature: Up to 85°C

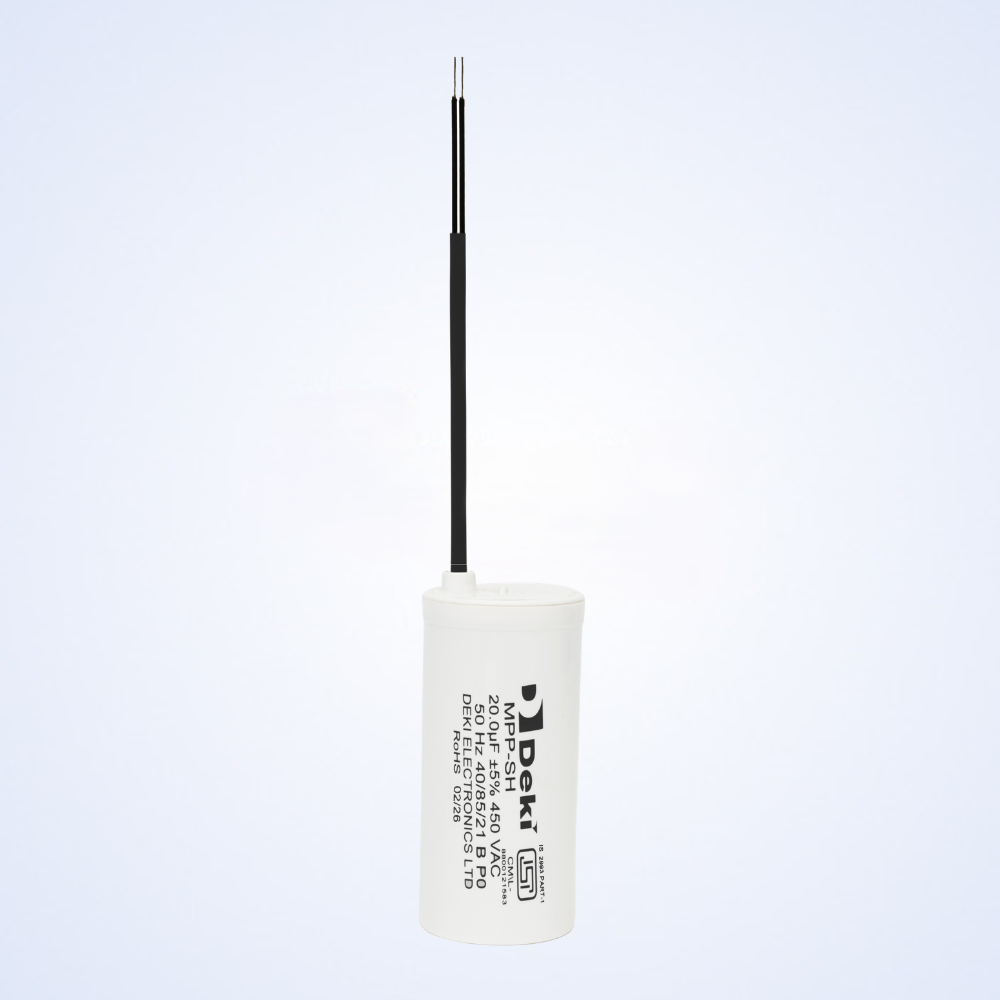

The capacitor is housed in a resin-filled plastic can, ensuring mechanical durability and moisture resistance

🔹 Applications

Motor run capacitors are widely used in:

🌀 Ceiling Fans

Ensures smooth operation and consistent speed.

❄️ HVAC Systems

Improves compressor and blower motor efficiency.

⚙️ Industrial Motors

Provides stable torque and reduces energy loss.

🧊 Refrigeration Systems

Enhances reliability in continuous operation cycles.

🔹 How to Select the Right Motor Run Capacitor

Selecting the right capacitor requires understanding:

1. Capacitance Value (µF)

Choose based on motor design — incorrect selection can reduce efficiency.

2. Voltage Rating

Always select a capacitor with equal or higher voltage rating (e.g., 450VAC).

3. Tolerance

Typical tolerance: ±5% (J type) for stable performance.

4. Operating Conditions

Consider:

Ambient temperature
Load variations
Duty cycle

5. Quality & Compliance

Ensure:

IS standards compliance
Proven reliability from manufacturer

🔹 Common Causes of Capacitor Failure

Understanding failure helps improve system reliability:

Overvoltage stress
High temperature exposure
Poor insulation quality
Inferior dielectric material

Using high-quality polypropylene capacitors significantly reduces these risks.

🔹 Why Choose Deki Electronics?

With over 40 years of manufacturing excellence, Deki Electronics offers:

Proven reliability in OEM applications
Advanced testing and quality control
Consistent electrical performance
Competitive pricing for bulk procurement

Deki’s motor run capacitors are trusted across industrial, appliance, and power electronics sectors.

🔹 Conclusion

Motor run capacitors are critical components that directly impact motor performance and lifespan. Choosing a high-quality, 450VAC polypropylene capacitor ensures:

Better efficiency
Reduced failures
Long operational life

For OEMs and industrial buyers, selecting the right capacitor partner is equally important as selecting the right specification.
