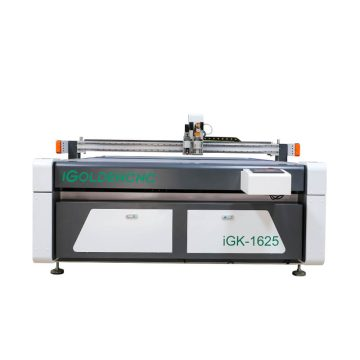

Flatbed Plotters for Cutting Paper and Board

Elevate your paper and board processing with our precision flatbed plotter cutting machines. Engineered for the printing, packaging, and graphics industries, these versatile digital cutting systems deliver exceptional accuracy for prototyping, short-run production, and custom die-less cutting applications.

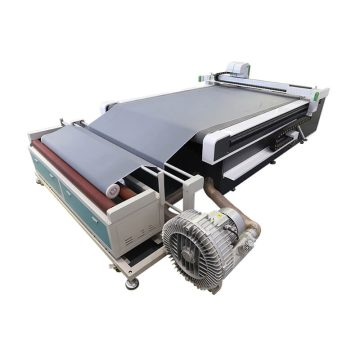

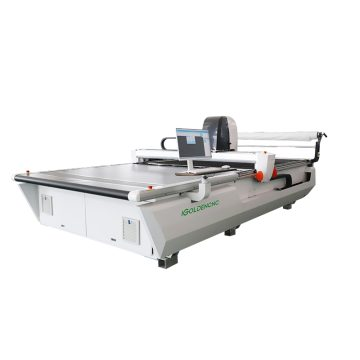

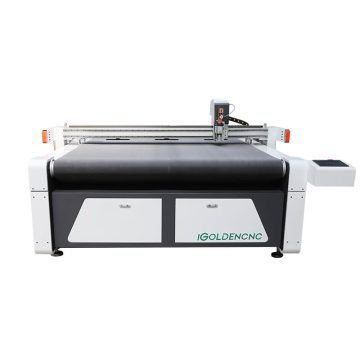

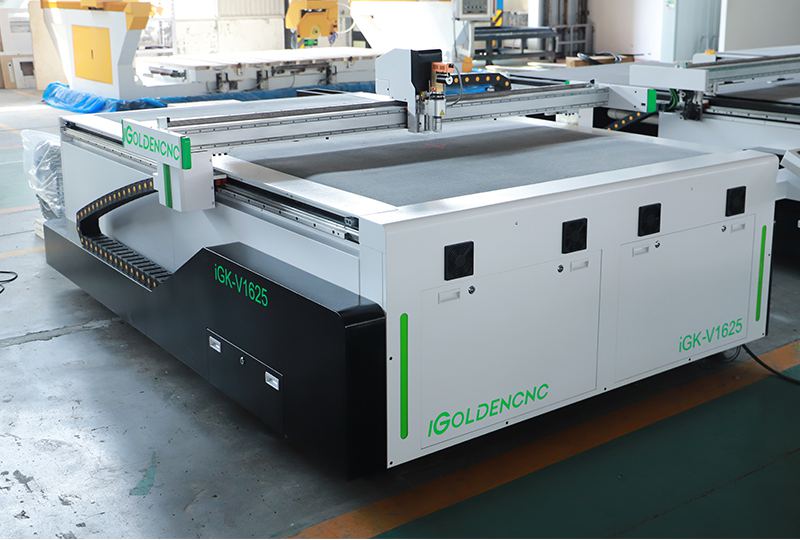

Flatbed Plotter

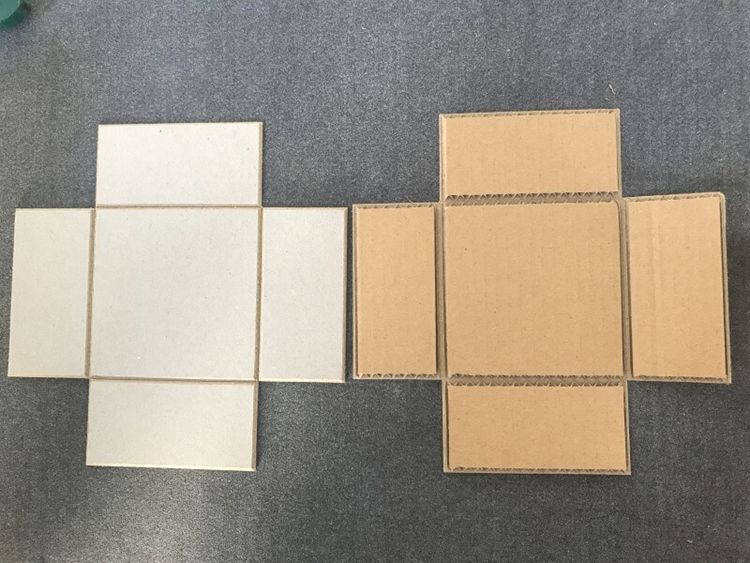

Flatbed plotters for cutting paper and board are advanced CNC digital cutting systems designed for high-precision cutting, creasing, kiss cutting, V-cutting, and contour cutting of paper, cardboard, corrugated board, honeycomb board, and other sheet materials. Unlike traditional die-cutting equipment, digital flatbed plotters require no physical dies, making them ideal for prototypes, short production runs, customized packaging, and on-demand manufacturing.

Widely used in the packaging, printing, advertising, POP display, label, and graphic design industries, these machines improve productivity, reduce production costs, and provide exceptional flexibility for modern digital manufacturing.

A flatbed cutting plotter is a computer-controlled machine that uses interchangeable tools—such as oscillating knives, drag knives, creasing wheels, and V-cut tools—to accurately process paper, cardboard, and other flexible or semi-rigid materials.

Instead of stamping materials with a steel-rule die, the machine follows digital vector files, allowing users to switch between jobs instantly without additional tooling costs.

Technical Specifications

Bed Size Options: 1600x1200mm, 2000x1500mm, 2500x1800mm, 3200x2200mm Positioning Accuracy: ±0.1mm repeatability Maximum Cutting Speed: 1000mm/s (tool and material dependent) Tool Station Capacity: 2-8 tool positions available Software Compatibility: AI, PDF, DXF, HPGL file formats Registration System: Optical camera for printed material alignment

Main Processing Functions

Full cutting
Kiss cutting
Contour cutting
Creasing
V-grooving
Half cutting
Perforating
Marking and drawing

Advanced Flatbed Cutting Technology

Digital Die-Less Cutting System

Our flatbed plotter cutting machine eliminates the need for expensive steel rule dies, enabling instant design changes and rapid prototyping. Import digital designs directly and begin cutting within minutes, dramatically reducing lead times for new packaging designs.

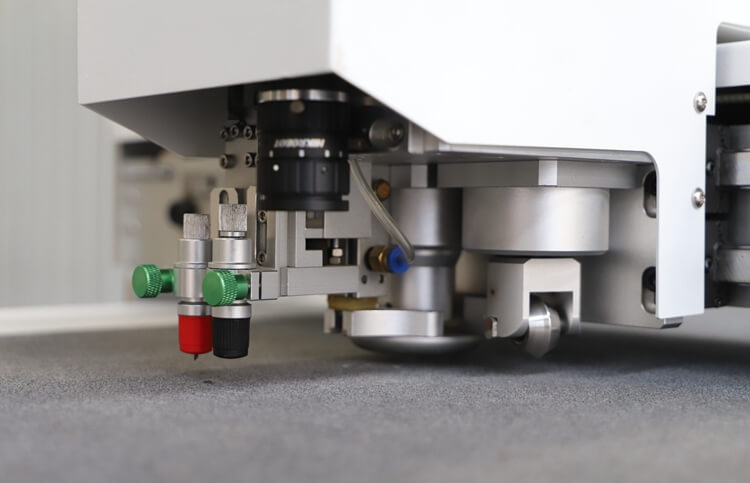

Multi-Tool Cutting Head

Equipped with interchangeable tooling options, the system handles cutting, creasing, perforating, and drawing operations in a single pass, streamlining your production workflow for complex packaging and display projects.

Precision Vector Cutting

Advanced servo-driven motion control ensures accurate tracking of complex vector paths, delivering consistent quality across intricate shapes, fine details, and tight tolerances required for premium packaging applications.

How Does a Flatbed Plotter Work?

The workflow is simple and highly efficient.

Step 1 – Create the Design

Design the packaging or graphics using software such as:

Adobe Illustrator
CorelDRAW
AutoCAD
ArtiosCAD
Esko software

Step 2 – Import the File

The vector file (DXF, AI, PLT, PDF, etc.) is sent directly to the machine.

Step 3 – Automatic Tool Selection

Depending on the material and process, the machine automatically uses the appropriate cutting or creasing tool.

Step 4 – Digital Cutting

The plotter performs:

Precision cutting
Folding line creasing
Contour cutting
V-cutting
Perforation

Step 5 – Finished Product

The finished components are ready for folding, assembly, printing, or shipping.

Industry Applications

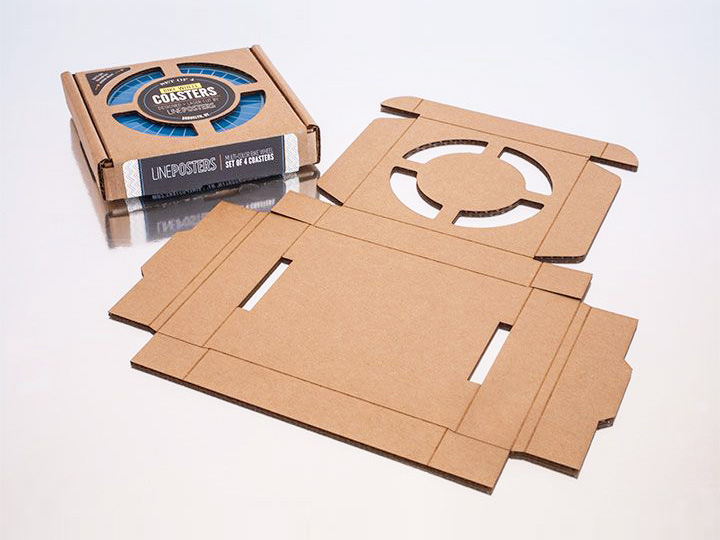

Packaging Prototyping & Sampling

Perfect for developing new packaging concepts, testing structural designs, and producing sales samples before committing to production tooling. Iterate designs rapidly without die investment.

Short-Run & Custom Packaging

Ideal for limited edition packaging, seasonal promotions, and custom orders where traditional die-cutting isn’t cost-effective due to lower volume requirements.

Point-of-Purchase Displays

Create eye-catching retail displays, counter units, and promotional materials with precise cutting and creasing for professional assembly and presentation.

Graphic Arts & Signage

Excellent for mounted graphics, presentation boards, exhibition materials, and specialty printing applications requiring precise trim and finishing.

Direct Mail & Specialty Printing

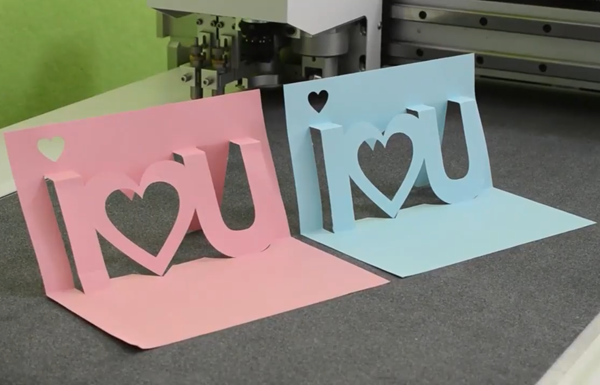

Streamline production of die-cut mailers, greeting cards, invitations, and specialty printed products with custom shapes and folding lines.

Model Making & Prototyping

Support product development and architectural modeling with precise cutting capabilities for concept development and presentation models.

Advantages of Flatbed Plotters

No die-making costs
High cutting accuracy
Fast job changeovers
Excellent material utilization
Reduced labor requirements
Flexible production
Ideal for prototypes and short-run manufacturing
Consistent, repeatable quality

Flatbed plotters are essential tools for high-precision, versatile cutting of paper and board. Whether used for package design, prototyping, signage or custom invitations, these machines offer significant advantages over traditional cutting methods. Their speed, accuracy and flexibility in handling a wide range of materials and cutting tasks make them a valuable asset in industries where custom shapes and intricate designs are critical.
