Aluminum Vacuum Brazing for Microchannel Heat Exchangers: Precision at Scale

Microchannel heat exchangers pack an enormous amount of surface area into a small footprint, which is exactly why they've become the default choice for automotive condensers, EV battery cooling plates, and compact HVAC-R systems. But that density comes at a cost: the channel walls are often thinner than a credit card, and any joining process that distorts, weakens, or contaminates those walls can ruin thermal performance before the part ever leaves the factory. Aluminum vacuum brazing has become one of the more reliable answers to that problem, and understanding why requires a look at what happens inside the furnace not just on the finished part.

What Makes Microchannel Geometry Difficult to Braze

A microchannel heat exchanger typically consists of flat, multi-port extruded aluminum tubes sandwiched between corrugated fins, all of which need to be metallurgically joined at hundreds of contact points. The channels themselves can be under a millimeter wide. This geometry creates two competing demands:

• Uniform heating across a core that may contain thousands of individual joints

• Minimal thermal distortion, since even slight warping can close off a channel or open a leak path

Traditional torch or induction brazing struggles here because localized heat input creates temperature gradients that the thin-wall aluminum simply can't absorb without deforming. That's part of why furnace-based methods, including vacuum brazing, dominate this segment of manufacturing.

Why Vacuum Brazing Fits This Application

Oxide Removal Without Flux

Aluminum forms a tenacious oxide layer almost instantly on exposure to air, and that oxide prevents filler metal from wetting the base material. Controlled Atmosphere Brazing (CAB), the more common alternative, deals with this using a fluoride-based flux that chemically breaks down the oxide during heating. Vacuum brazing takes a different route: by pulling the furnace chamber down to a high vacuum often in the range of 10⁻⁴ to 10⁻⁵ torr and relying on magnesium vapor from the base alloy or filler metal, the process disrupts the oxide layer without any chemical flux at all.

This matters for microchannel parts specifically because flux residue trapped inside sub-millimeter channels is difficult to rinse out and can cause long-term corrosion once the part is in service, circulating coolant or refrigerant. A flux-free joint eliminates that failure mode entirely.

Filler Metal Behavior in a Vacuum Environment

Most vacuum-brazed aluminum assemblies use a clad filler layer commonly an aluminum-silicon alloy such as 4045 or 4047 pre-bonded to the core material during extrusion or rolling. As furnace temperature approaches the filler's melting point (typically around 577–615°C, just below the base alloy's own melting range), the silicon-rich layer liquefies and flows into the joint by capillary action. The vacuum environment keeps this molten filler clean, free of oxidation, and able to wet the base metal evenly across every contact point in the core which is what produces the leak-tight, metallurgically continuous bond microchannel designs require.

Furnace Cycle Control

A vacuum brazing furnace isn't a single-stage process. It typically runs through several phases:

1. Evacuation removing air and moisture from the chamber

2. Ramped heating bringing the load up to braze temperature slowly enough to avoid thermal shock

3. Soak holding at temperature long enough for filler metal to flow and wet every joint, without over-dwelling and eroding the thin base material

4. Controlled cooling, sometimes with partial gas backfill (often argon or nitrogen) to speed heat extraction once the joints have solidified

Getting this cycle wrong is the most common source of defects. Too fast a ramp and you get temperature non-uniformity across a large core; too long a soak and you risk erosion of the thin channel walls by the molten filler itself a defect sometimes called "washout."

Metallurgical and Quality Considerations

Joint Integrity and Diffusion Bonding

A properly formed braze joint isn't just filler metal sitting between two surfaces it involves genuine diffusion bonding, where atoms from the filler and base metal intermix at the interface. This diffusion zone is what gives the joint its mechanical strength and resistance to thermal cycling, which matters considerably in applications like EV battery cooling plates that see repeated heat-cool cycles over the vehicle's service life.

Leak Testing and Non-Destructive Evaluation

Because microchannel exchangers often carry refrigerant or coolant under pressure, post-braze leak testing is standard practice. Helium mass spectrometry is common for high-sensitivity detection, while pressure decay testing is used for higher-volume production. Some manufacturers also use dye penetrant inspection or, for critical aerospace and defense applications, X-ray or CT scanning to verify internal joint quality that can't be seen from the outside.

Distortion and Fixturing

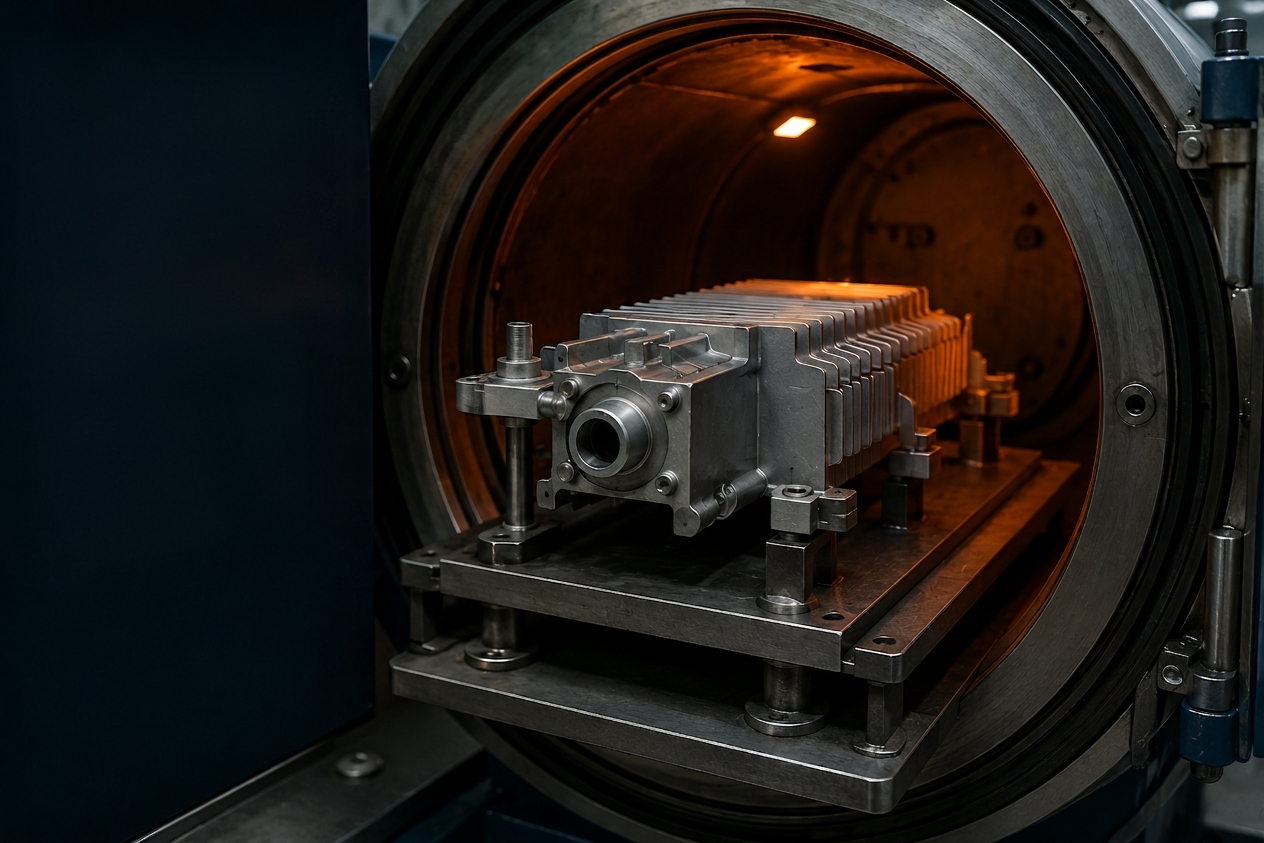

Even with a flux-free, low-stress vacuum process, thin-wall aluminum can still warp under its own weight at braze temperature. Graphite or stainless steel fixturing is commonly used to support the core through the thermal cycle, though fixture design has to account for differential thermal expansion so it doesn't itself introduce stress into the joints.

Where This Process Shows Up

Vacuum-brazed aluminum microchannel cores are common across several industries:

• Automotive and EV thermal management condensers, chillers, and battery cooling plates where weight reduction and compact packaging are priorities

• HVAC-R systems commercial and residential heat pump and refrigeration coils

• Aerospace compact heat exchangers where flux residue is unacceptable and weight savings are critical

• Industrial process cooling plate-fin exchangers used in cryogenic and gas processing equipment

Each of these applications shares the same underlying constraint: thin material sections, high joint density, and a need for leak-tight performance that a flux-based or mechanical joining method would struggle to guarantee consistently at scale.

Comparing Vacuum Brazing to Other Joining Methods

Neither method is universally "better" the choice depends on channel geometry, corrosion requirements, production volume, and whether flux residue is acceptable for the end application.

Frequently Asked Questions

What temperature is used in aluminum vacuum brazing?

Most aluminum vacuum brazing cycles run between 577°C and 615°C, just below the base alloy's melting point, allowing the lower-melting-point filler alloy (commonly 4045 or 4047) to flow into the joint without melting the surrounding structure.

Why is vacuum brazing preferred over flux brazing for microchannel parts?

Flux residue is difficult to remove from channels under a millimeter wide and can promote corrosion over time. Vacuum brazing removes the aluminum oxide layer using magnesium vapor instead of chemical flux, leaving no residue inside the narrow channels.

Does vacuum brazing weaken thin-wall aluminum tubing?

Not when the furnace cycle is properly controlled. Excessive soak time at peak temperature can cause filler metal erosion ("washout") of thin walls, but a correctly profiled heating and cooling cycle avoids this while still achieving full joint diffusion.

How is joint quality verified after vacuum brazing?

Common methods include helium leak testing, pressure decay testing, and visual or dye penetrant inspection. Critical applications, such as aerospace components, may also use X-ray or CT scanning to confirm internal joint continuity.

Can vacuum brazing be used for large-volume production?

Yes. Vacuum furnaces are batch processes, but modern furnace designs accommodate large load sizes and multiple heat exchanger cores per cycle, making the process viable for automotive and HVAC-R production volumes, not just prototyping.
